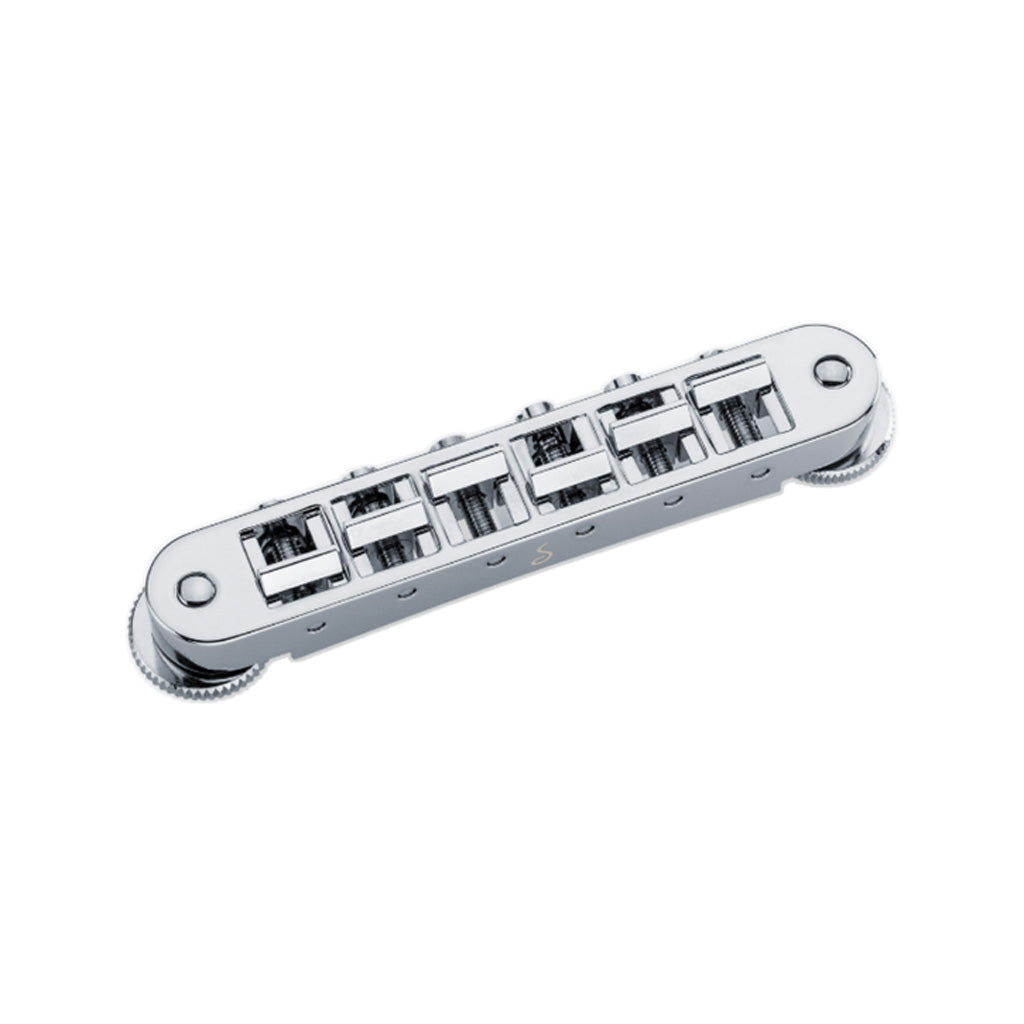

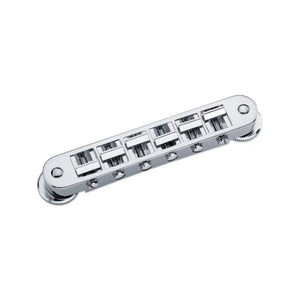

Allparts GB-0540-001 Schaller Nashville Nickel Tunematic Bridge

The Schaller GTM Nashville Tunematic Bridge is a premium Tune-o-matic bridge designed for Les Paul™* style guitars. It features adjustable post spacings ranging from 74.0 to 74.5 mm and includes special retainer springs to eliminate bridge rattle and string buzz. The saddles, crafted from brass, come without pre-configured string grooves, allowing for custom string spacing. The slant angle is adjustable, giving you the flexibility to optimize it based on scale length and string gauge.

Features:

• Suitable for 3-pickup switching Gibson® guitars
• Special retainer springs to prevent bridge rattle or string buzz
• Saddles supplied without preconfigured string grooves allowing for individual string spacing
• Brass saddles
• Distance height adjustment screws 74 - 74.5mm
• String spacing (E-e) 52,5mm
• String radius 12“-14“ (usable for fretboard max. 10-16 inches, depending on the notches of the string saddles more outside or inside)
• Minimal G/d string height above body 13,7mm
• Includes 2 press-in bushings M7 with 2 height-adjustment screws M5 (metric)
• Weight: 53g (70g with accessories)
