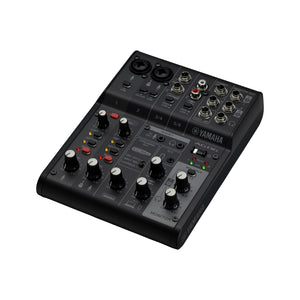

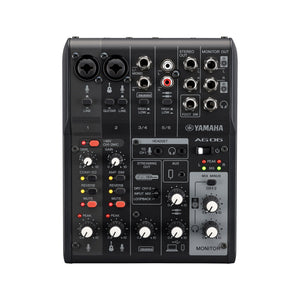

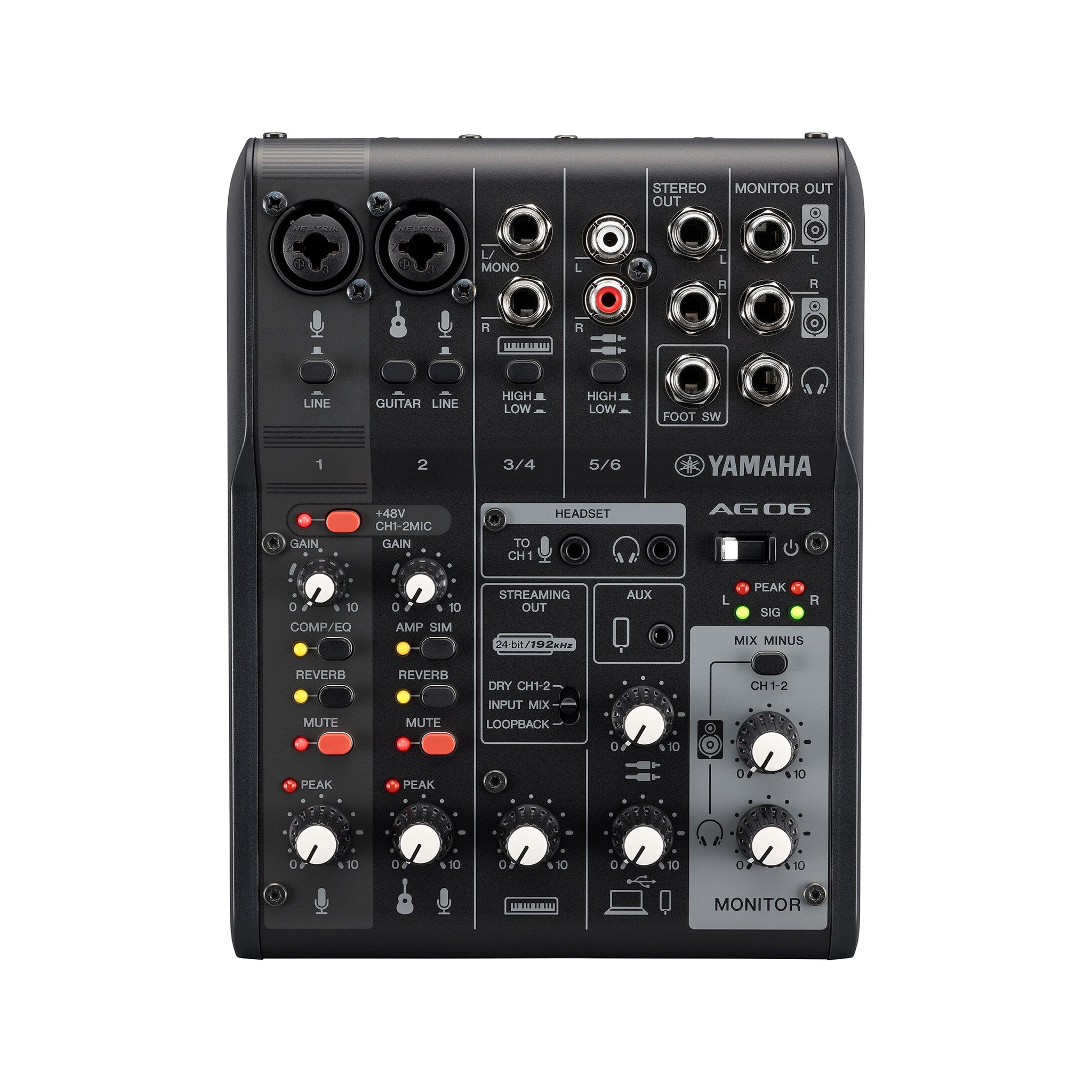

Name: Yamaha AG06MK2 6-channel Mixer and USB Audio Interface, Black
Brand: Yamaha
SKU: Y01-AG06MK2B
Price: 359.0 SGD
Availability: InStock

Yamaha AG06MK2 6-channel Mixer and USB Audio Interface, Black

(0)

View
All 3


$359.00

(Incl. Taxes & Shipping Cost)

About This Product

Two heads are better than one, and when it comes to live streaming, the same can be said for microphone inputs. The AG06MK2 offers the same user-friendly configuration and operation that has become synonymous with the AG series, but also comes equipped with two phantom powered mic inputs for condenser microphones. Combined with flexible connectivity including an upgraded 4-pole mini I/O, the AG06MK2 opens up a broader range of dialogue, interview, musical ensemble performance, or other streaming applications that the AG01 or AG03MK2 setups can’t cover.

Features:

A 6-channel live streaming mixer with USB audio interface.
Two condenser microphones can be used simultaneously
+48 V phantom power on CH1-2 input for condenser mics or Dl boxes
Hi-Z input for guitars on CH2
High resolution (24-bit, 192 kHz) 2-track audio recording and playback
4-pole mini input/output (TRRS) to support a wider range of streaming applications
Flexible inputs and LOOPBACK function ideal for live streaming or recording
Mute button for convenient live streaming
Easy control and pro sound with 1-TOUCH effects (COMP/EQ, REVERB and Amp Simulator)
AG Controller (Windows/Mac/iOS ) for precise parameter control
Windows/Mac support by USB-C connection
iOS connectivity via Apple Camera Adapter (requires external USB power supply)
Android supported by 4-pole mini input/output (TRRS)
USB-C power input (5 V DC, 900 mA)
Cubase Al, WaveLab Cast, Cubasis LE and Rec'n'Share are available
“OBS Certified” device. Provides seamless streaming experience with OBS Studio.

Specifications

Mic/Line Input: 2 - CH1: Combo (Mic, +48 V phantom power / Line), 3.5 mm (1/8") stereo mini (Headset mic, Plug-in power), CH2: Combo (Mic, +48 V phantom power / Guitar input / Line)
Stereo (Line) Input: 2 x L/R Stereo: Phone, RCA
Smartphone Input: 1 x Phones / Headset Phones
USB Input: 1
Headphones Output: 2 x Phones/Headset Phones
Smartphone Output: 1 x 4-pole mini input/output (TRRS)
Monitor Out: 1
Stereo Out: 1
USB Out: 1
Bus: 1 x Stereo
Functions: Mute button x 1, Pad button x 2, HI-Z button x 1, Streaming Out (Dry CH 1-2G / Input Mix/ Loopback), Mix Minus Mic (On / Off)
DSP: Comp/EQ, Reverb (SPX Reverb), Amp Sim
USB Audio: 2 In / 2 Out, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 192 kHz, Bit Depth: 24-bit, Type-C
USB DC Power Input: Type-C, 5 V DC, 900 mA
Power Requirements: 5 V DC, 900 mA
Includes: USB2.0 Cable (1.5 m), Quick Guide, Safety Guide, Wavelab Cast Download Information, Cubase AI Download Information
Dimensions: 6" (W) x 7.9" (D) x 2.5" (H) / 152mm (W) x 201mm (D) x 63mm (H)
Mixer Weight: 0.9 kg (2.0 lbs)
